Broadcasting / 5G LTE

Frequency	Output Power	Voltage	Current	Dimension	Catalogue

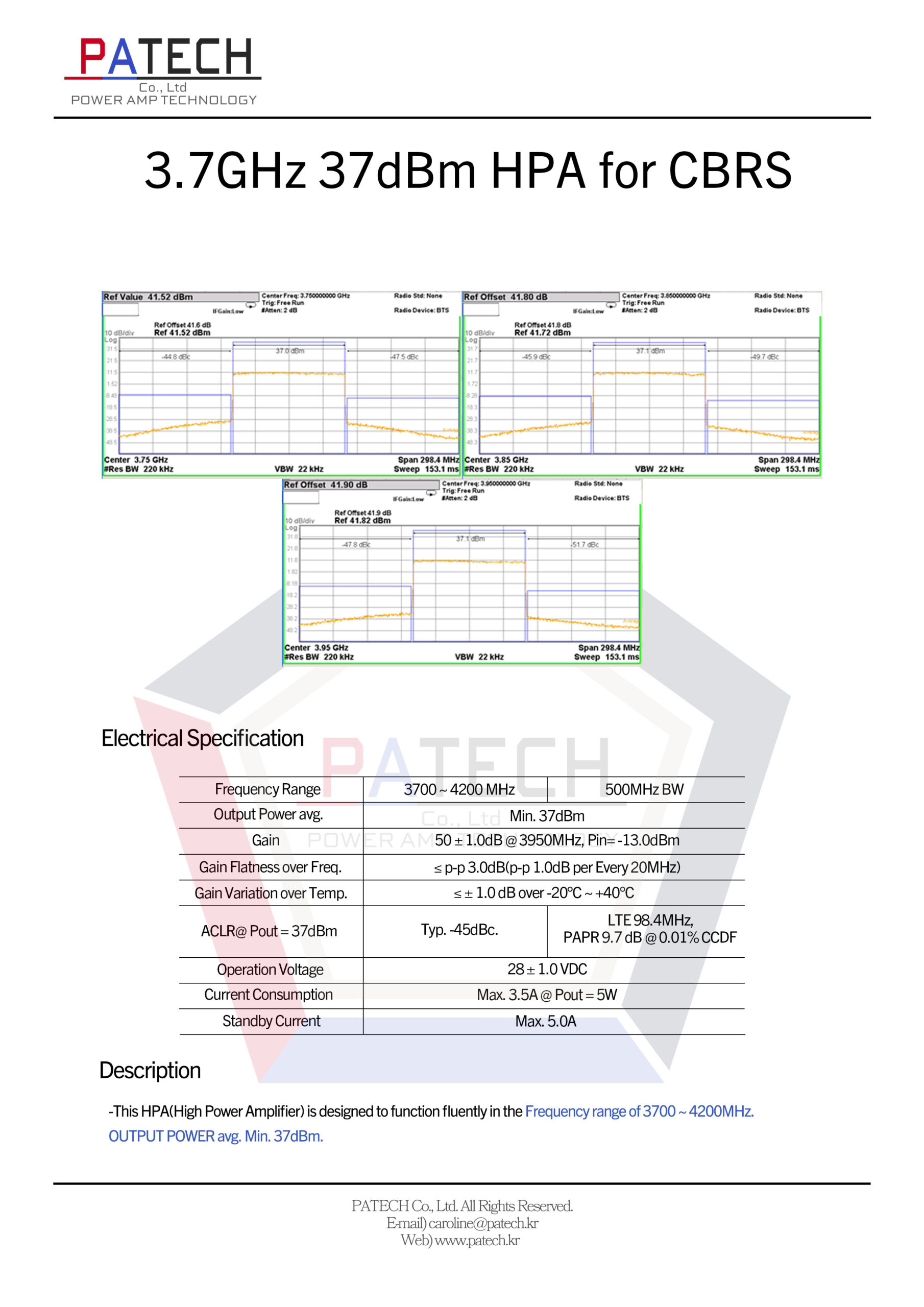

3700~4200 MHz	Min. 37dBm	28V	Max. 3.5A	Adjustable	Open

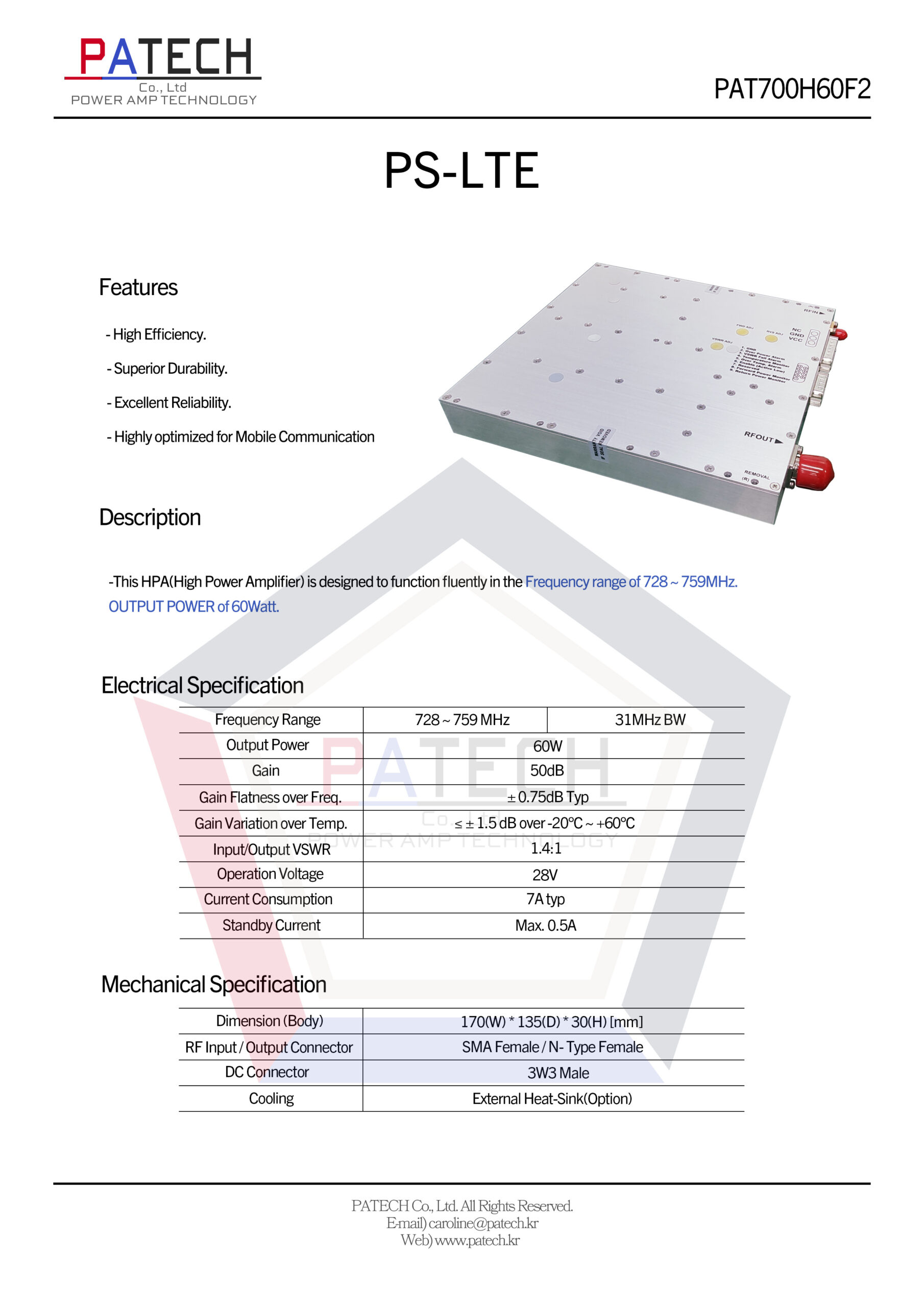

728~759 MHz	60W	28V	7A typ	17013530mm	Open
869~894 MHz	60W	28V	7A typ	17013530mm	Open

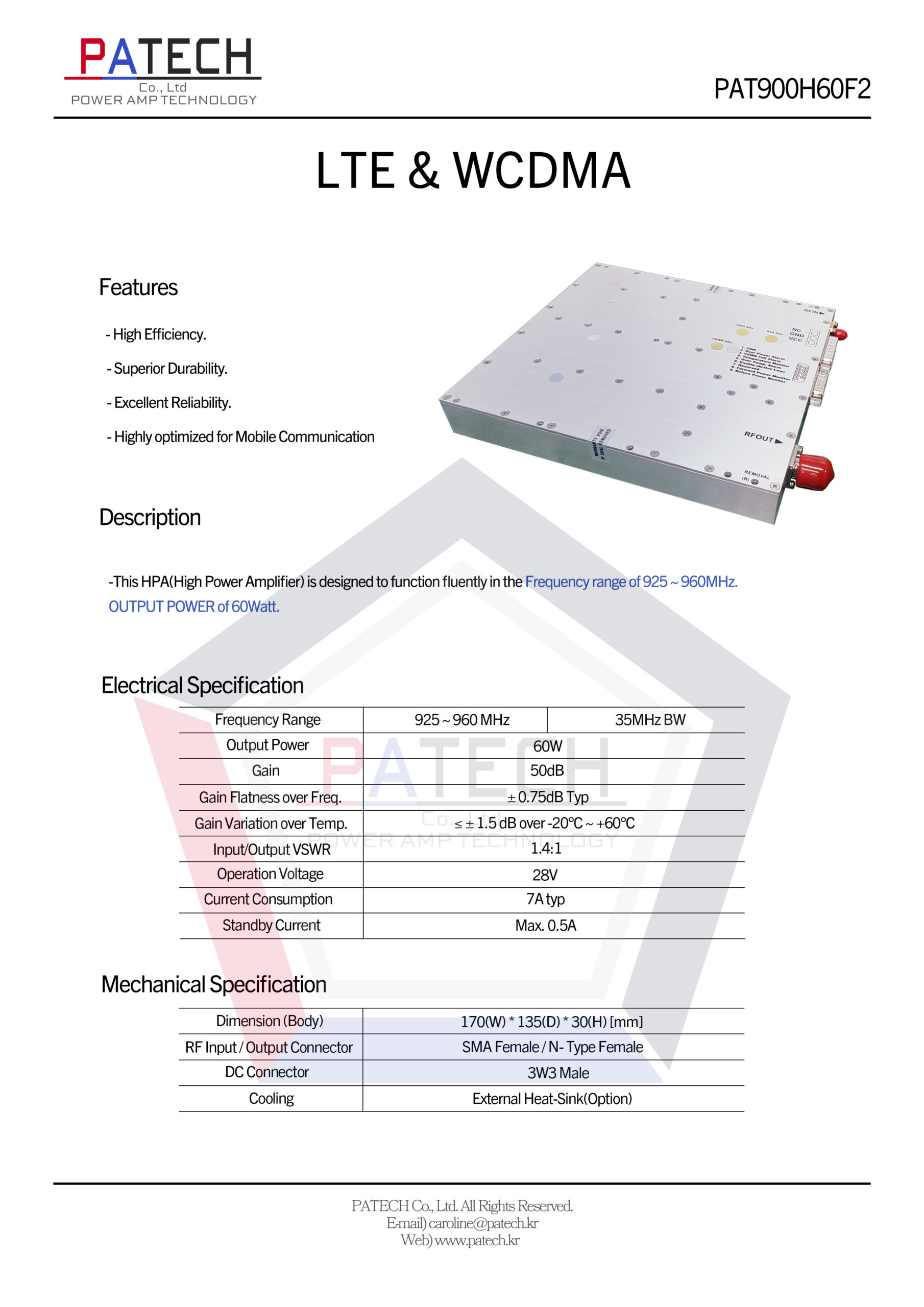

925~960 MHz	60W	28V	7A typ	17013530mm	Open
1805~1880 MHz	60W	28V	7A typ	17013530mm	Open

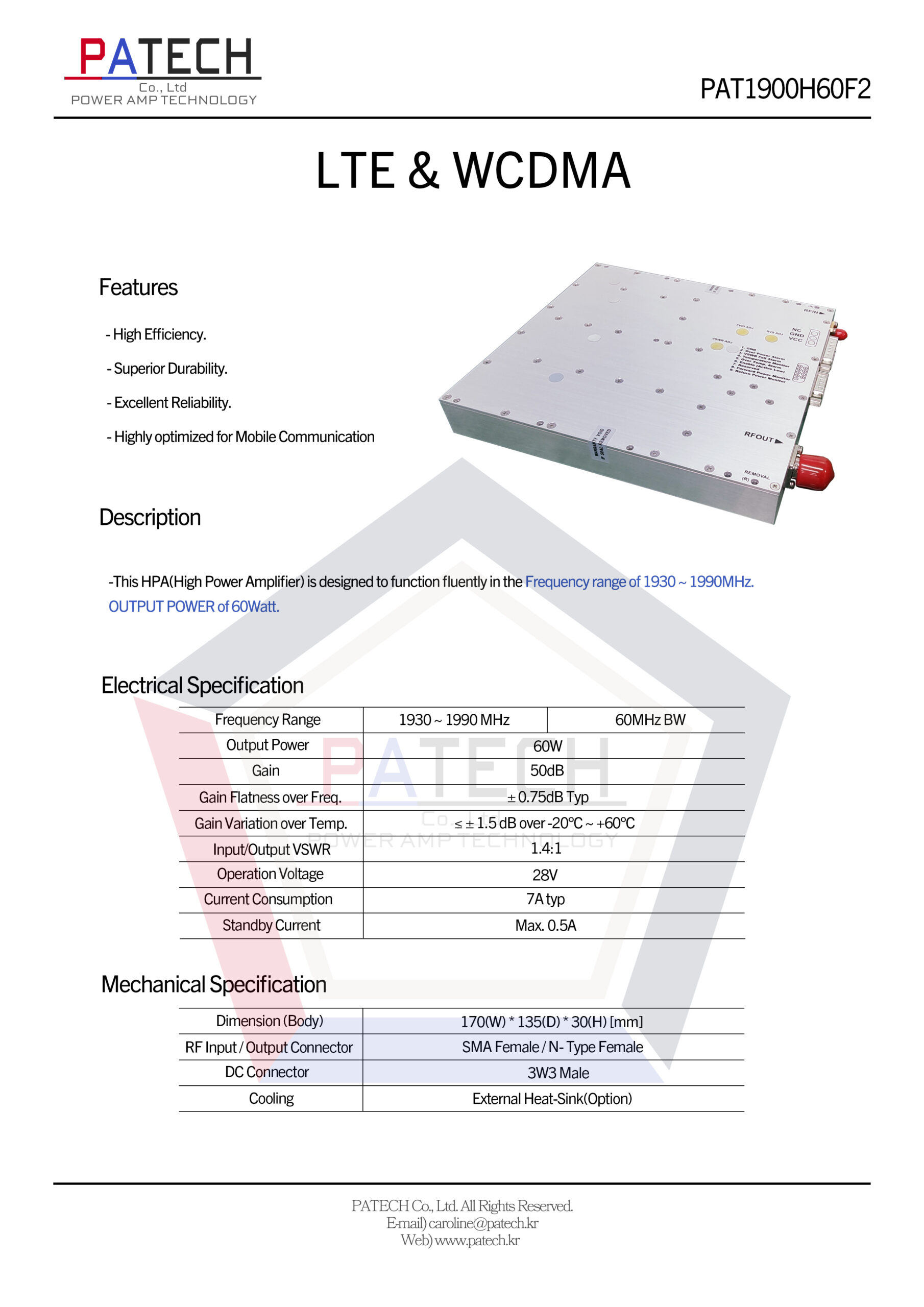

1930~1990 MHz	60W	28V	7A typ	17013530mm	Open
2110~2170 MHz	60W	28V	7A typ	17013530mm	Open
2520~2590 MHz	60W	28V	7A typ	17013530mm	Open

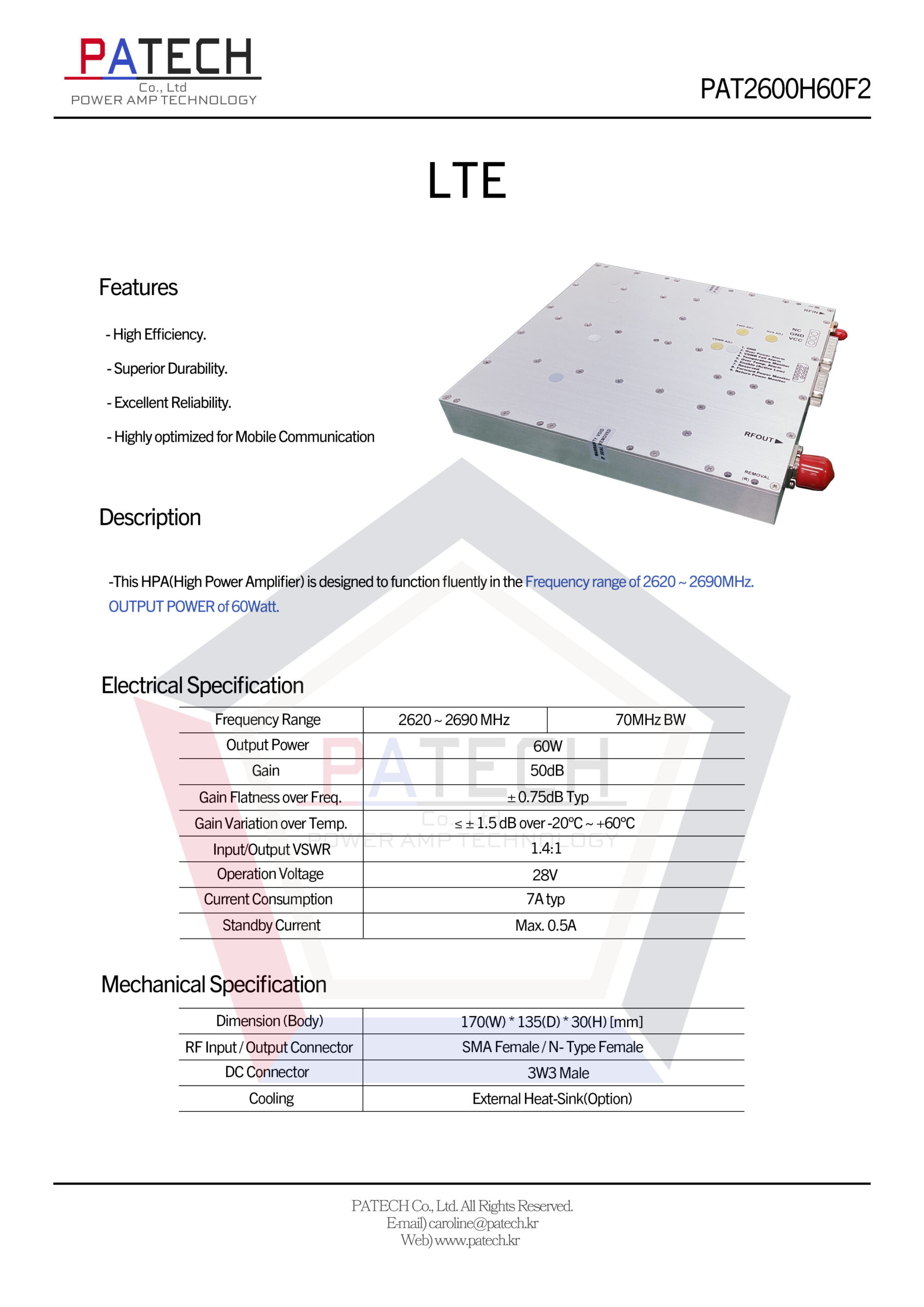

2620~2690 MHz	60W	28V	7A typ	17013530mm	Open
3400~3700 MHz	Min. -45dBc	28V	Max. 2.0A	11013028mm	Open
728~803 MHz	100W/70w	28V	Max. 12.0A	16011560mm	Open

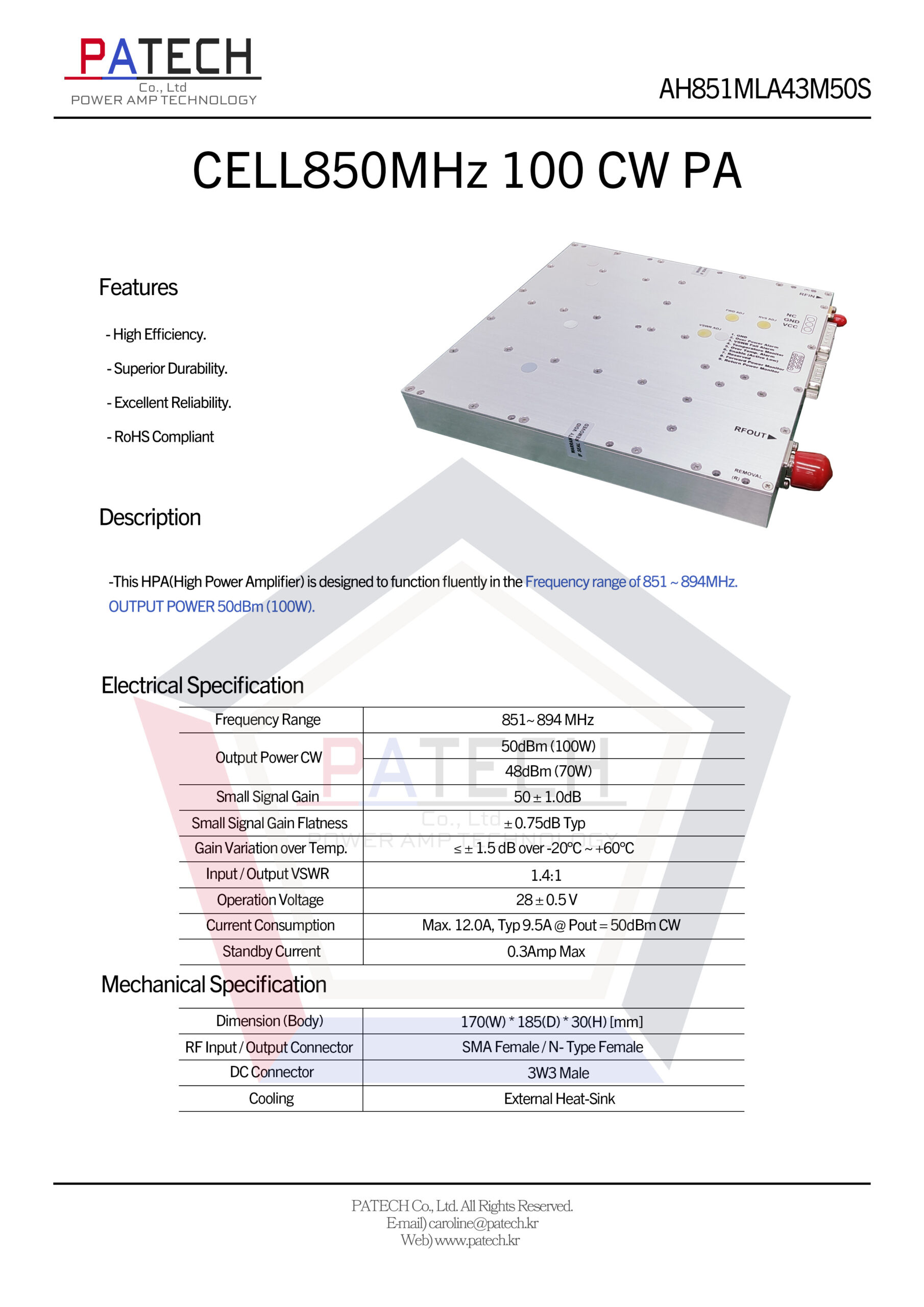

851~894 MHz	100W/70w	28V	Max. 12.0A	16011560mm	Open

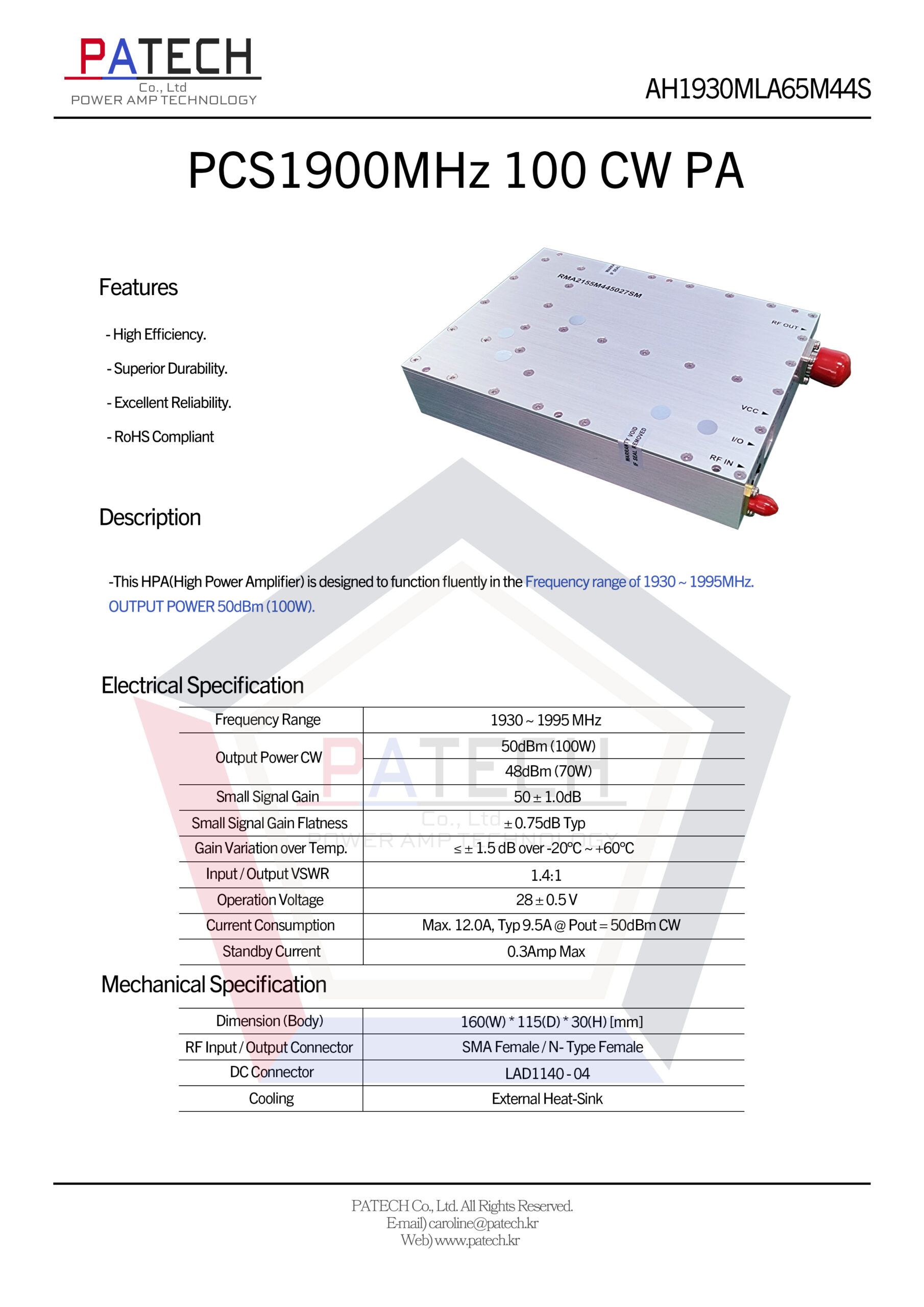

1930~1995 MHz	100W/70w	28V	Max. 12.0A	16011560mm	Open
2110~2200 MHz	100W/70w	28V	Max. 12.0A	16011560mm	Open

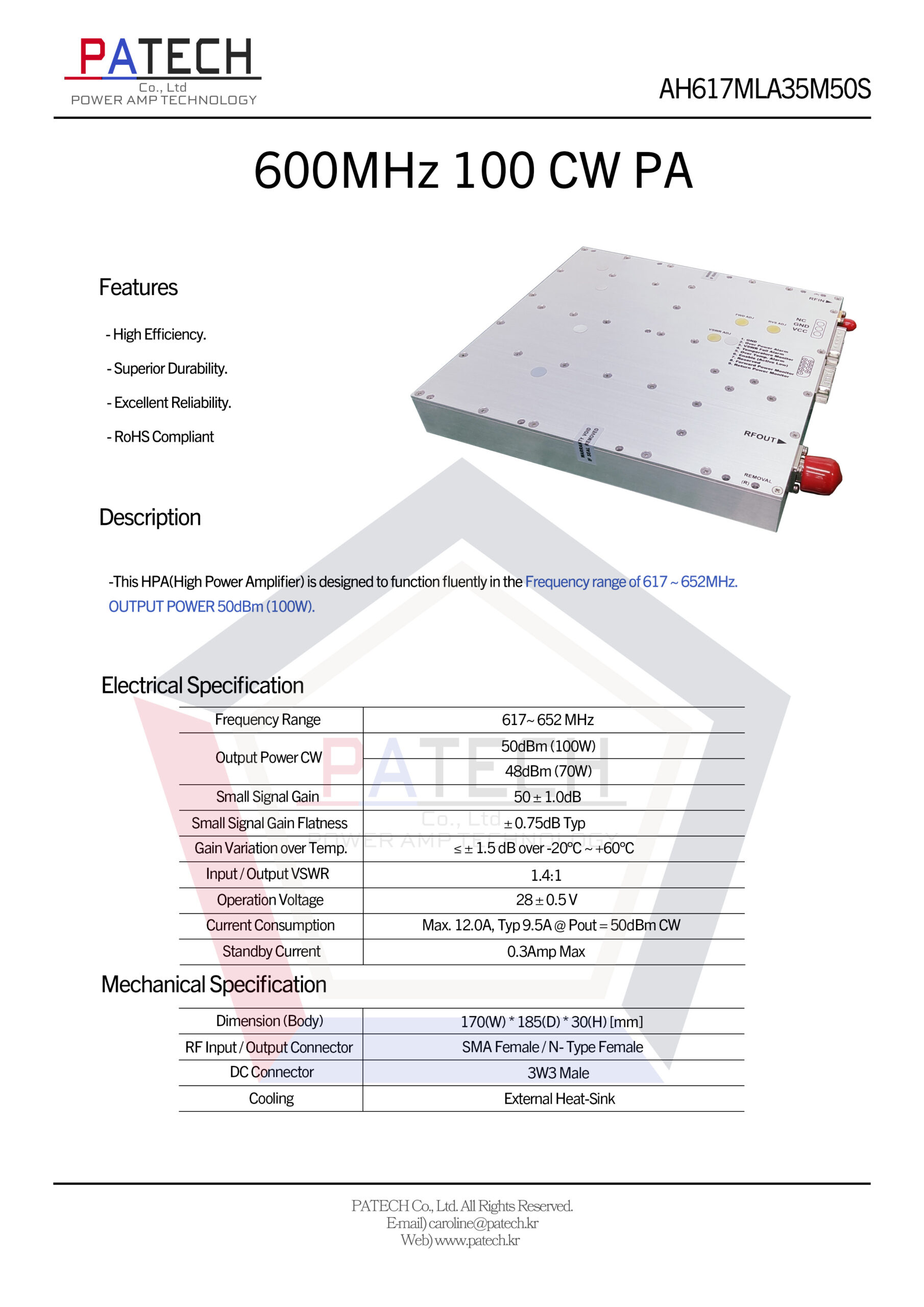

617~652 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open

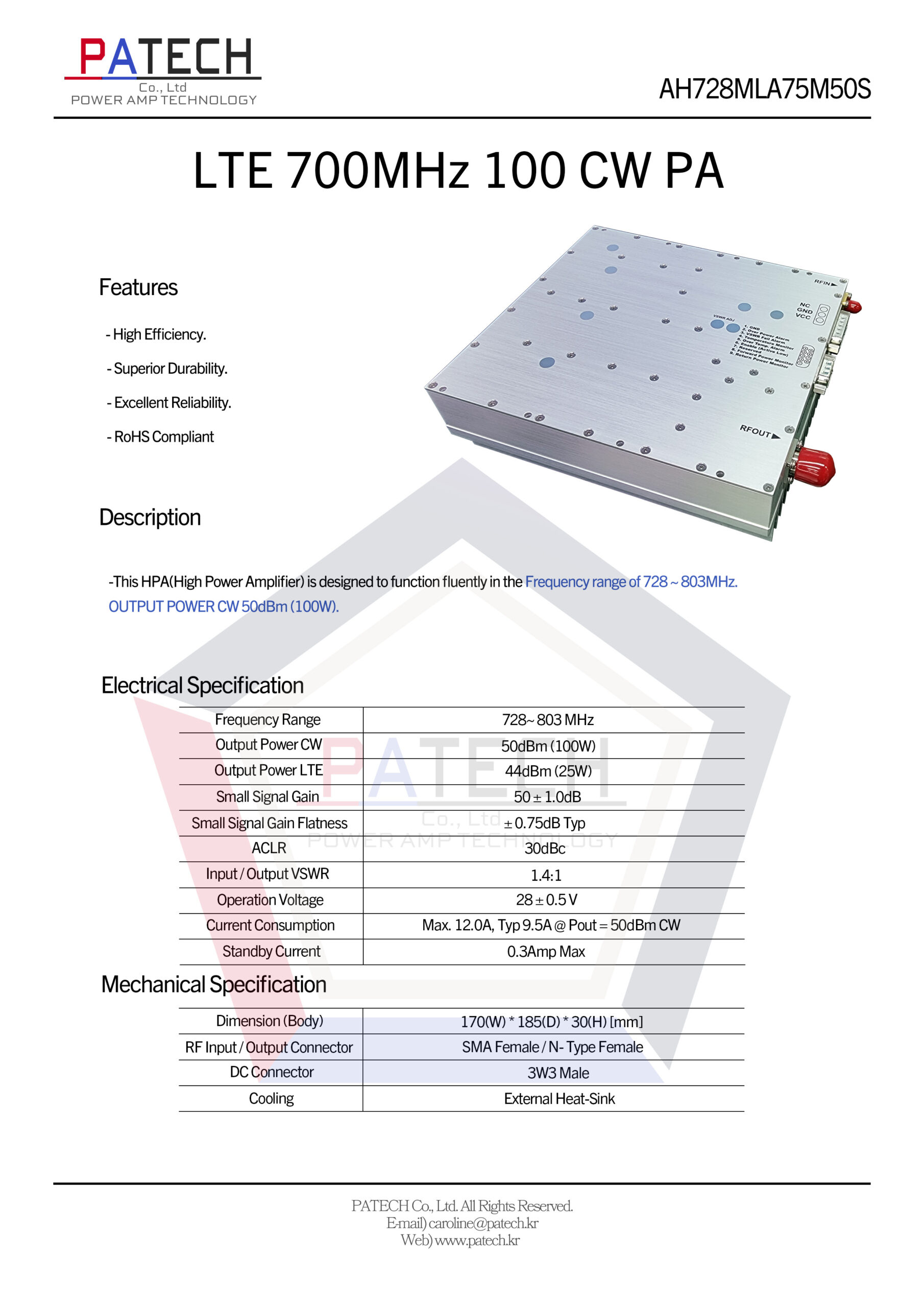

728~803 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open

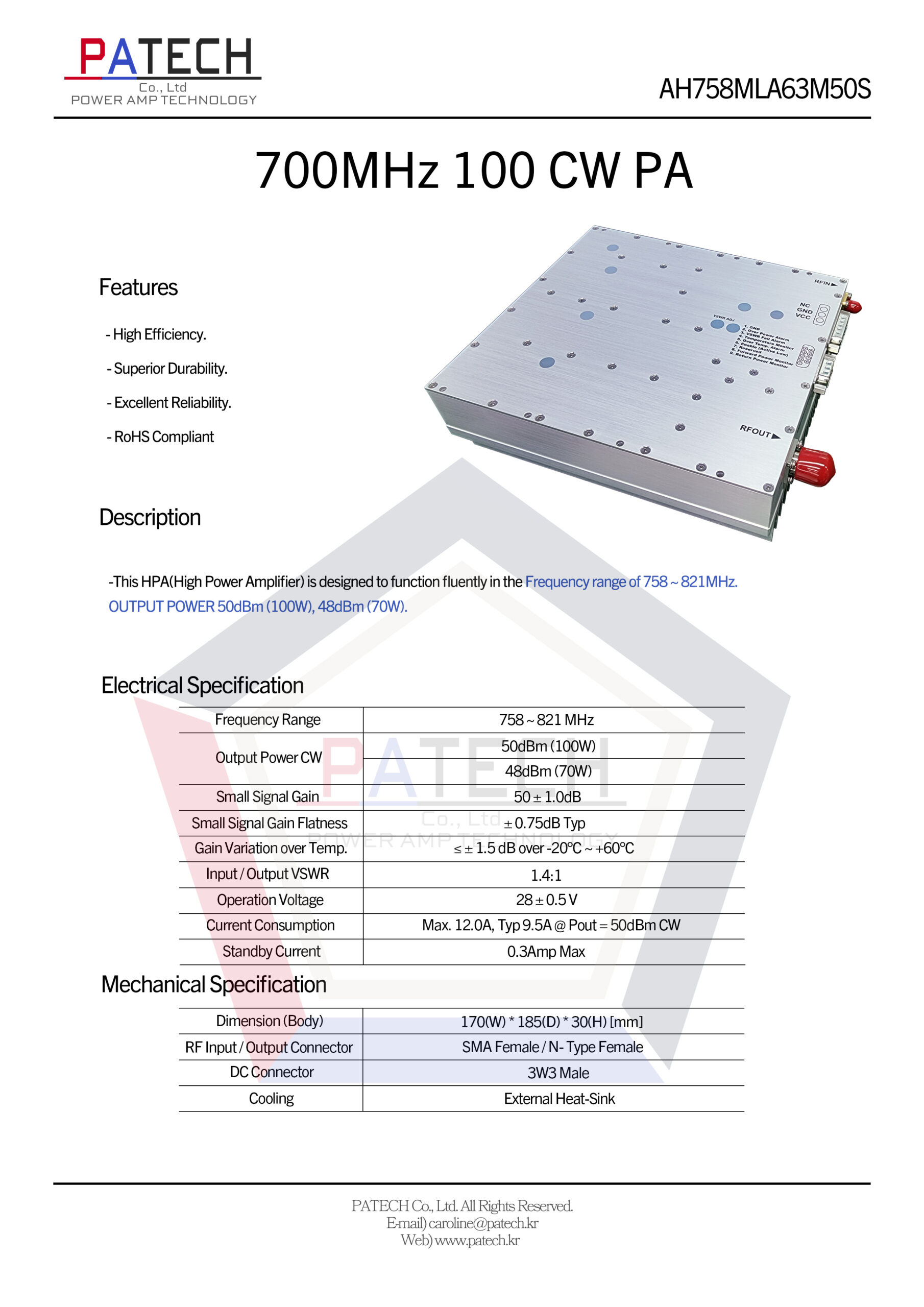

758~821 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open
851~894 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open
925~960 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open
1805~1880 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open
1930~1995 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open
2110~2200 MHz	100W/70w	28V	Max. 12.0A	17018530mm	Open

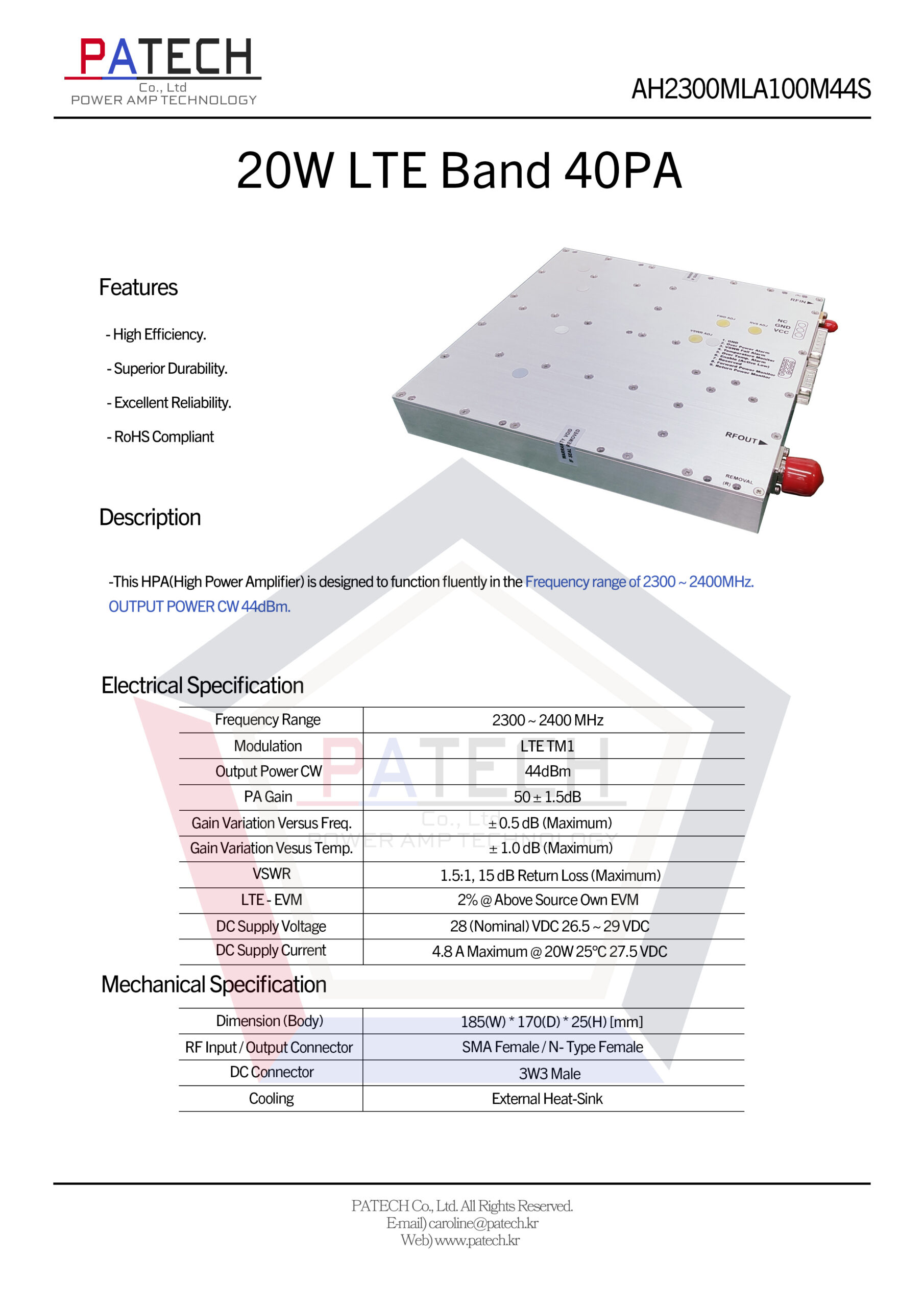

2300~2400 MHz	44dBm	28V	Max. 4.8A	18517025mm	Open
2496~2690 MHz	44dBm	28V	Max. 4.8A	18517025mm	Open

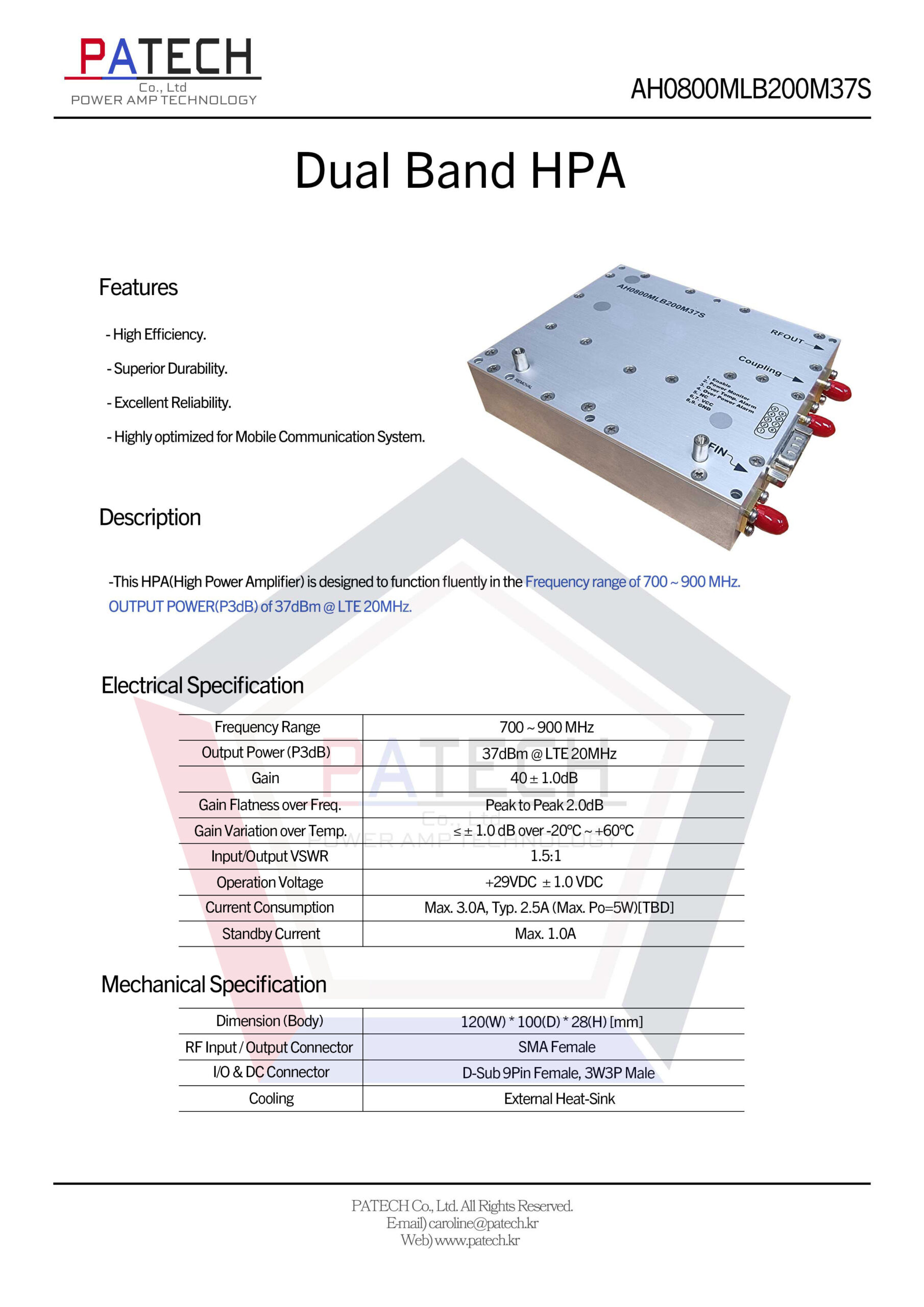

700~900 MHz	37dBm	29V	Max. 3.0A	12010028mm	Open

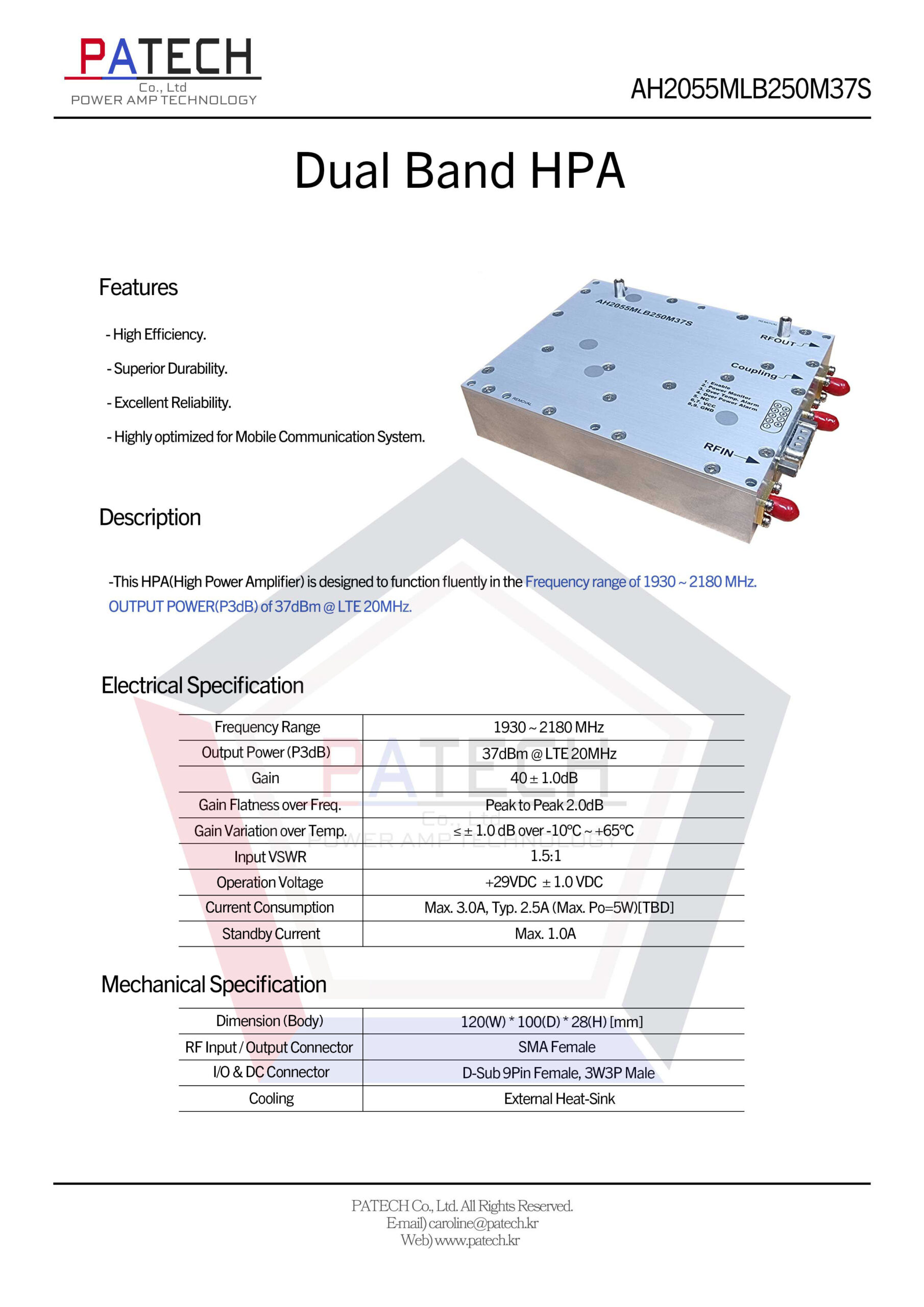

1930~2180 MHz	37dBm	29V	Max. 3.0A	12010028mm	Open

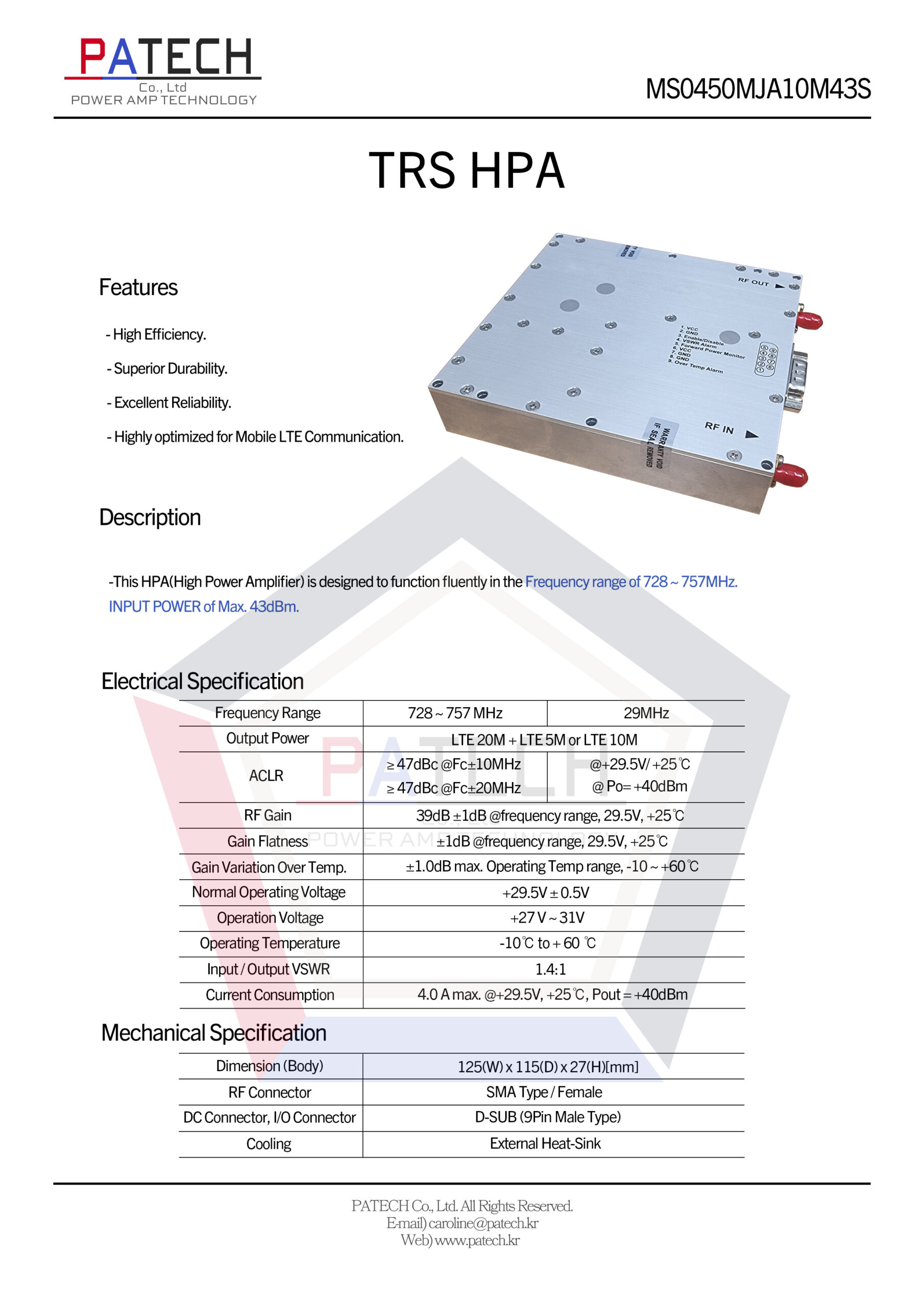

728~757 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open
728~757 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open

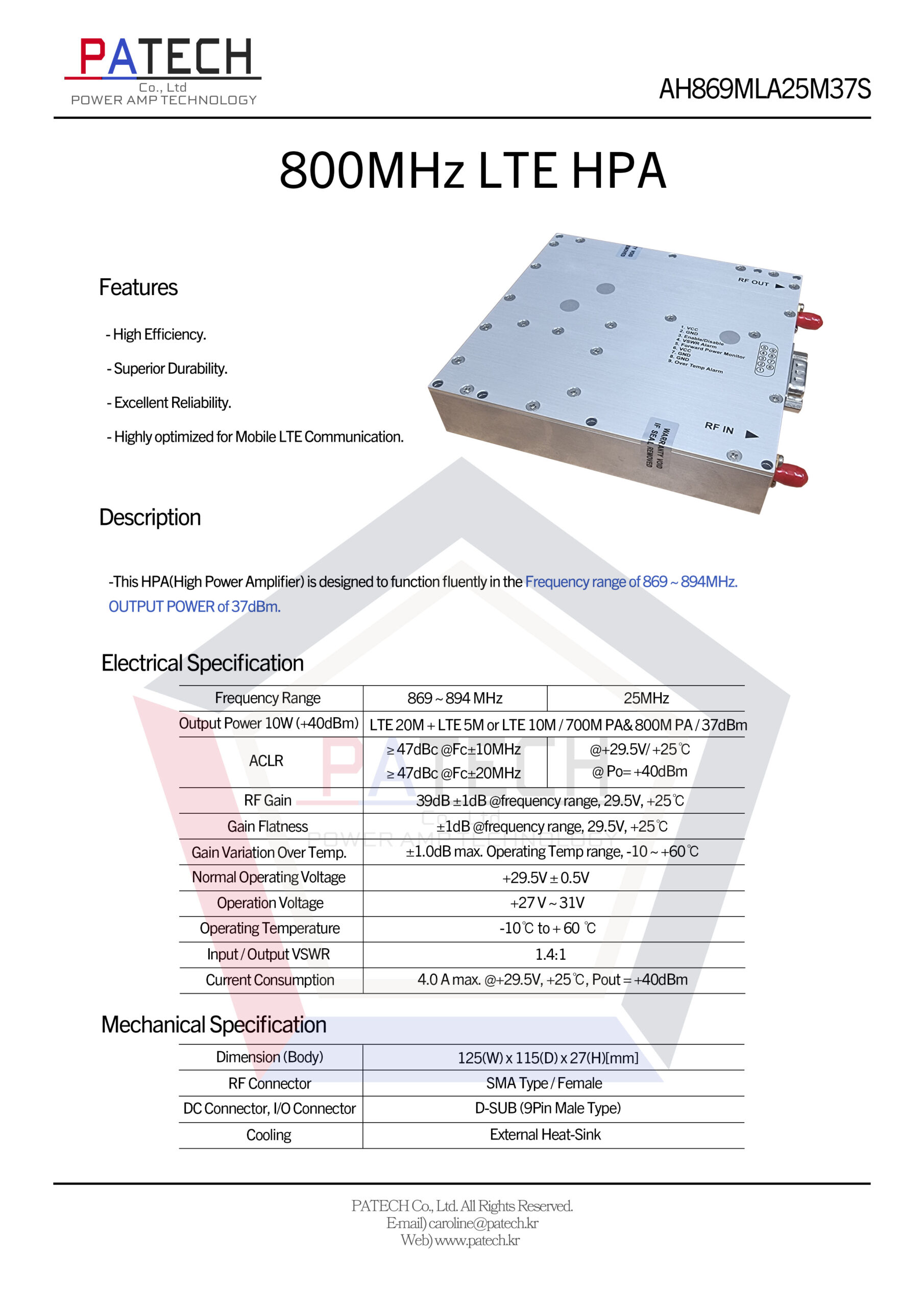

869~894 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open
1930~1995 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open
2110~2180 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open
1930~2180 MHz	LTE20M + LTE5M or LTE10M	27V ~ 31V	Max. 4.0A	12511527mm	Open
